    AMOS-17 Satellite Ku-band for Africa

    Regional African Beams for Broadcasting and Data Services

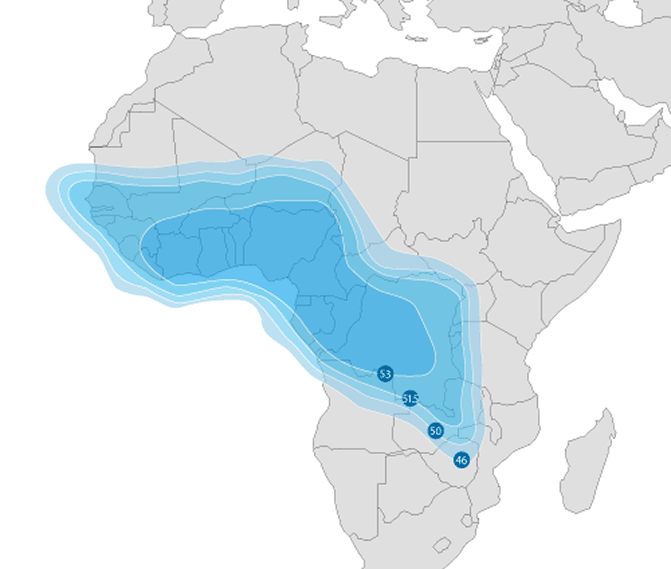

    Ku-1-map - amos17
    Ku-2 - Map -spacecom

    With two high-power footprints , AMOS-17 Ku-band beams serve broadcast, data and telecom markets for SOHOs, SMEs and consumers in Africa and across the northern region of the Indian Ocean.

    17 degrees east is a leading broadcast position for central and western Africa, with AMOS-17 Ku-1 beam providing extensive coverage stretching from south DRC to north of Senegal, with many TV platforms.

    AMOS-17 Ku-2 beam provides excellent performance for maritime applications.



    Simplification of the broadcasting chain is key to our customers, and AMOS-17 offers a unique benefit of using one Uplink to broadcast to both beams simultaneously

    Ku-1 Beam

    EIRP at beam peak > 52 dBW
    G/T at beam peak > 6 dB/K
    Uplink frequencies 13.75 to 14.5 Ghz; 17.3 to 18.1 Ghz
    Downlink frequencies: 10.95 to 11.2 GHz; 11.7 to 12.75 GHz; 13.4 to 13.65 GHz
    Uplink polarization : Vertical and Horizontal
    Downlink polarization : Vertical and Horizontal

    Ku-2 Beam

    EIRP at beam peak > 55 dBW
    G/T at beam peak > 9 dB/K
    Uplink frequencies 13.75 to 14.5 Ghz; 17.3 to 18.1 Ghz
    Downlink frequencies: 10.95 to 11.2 GHz; 11.7 to 12.75 GHz; 13.4 to 13.65 GHz
    Uplink polarization : Vertical and Horizontal
    Downlink polarization : Vertical and Horizontal
